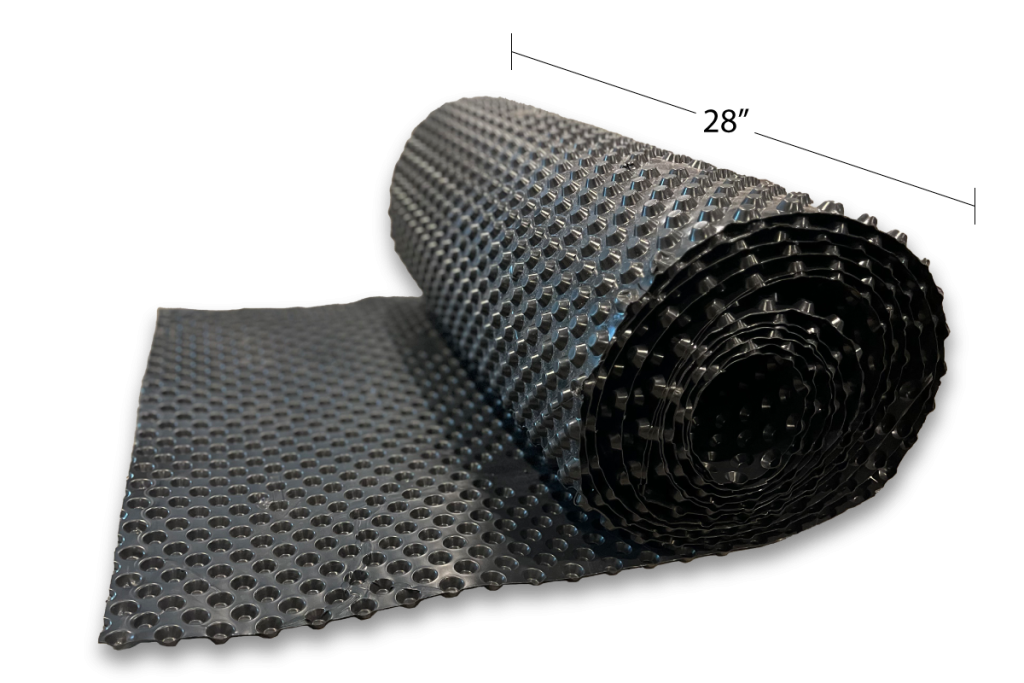

The Moisture Mitigator by Earthworks provides a drainage plane that tackles challenges related to code compliance, warranty issues, and moisture control on building exteriors, including addressing problems caused by sun-driven moisture.
BENEFITS
- Interlocking design prevents mortar bridging while providing continuous open cavities for liquid out the bottom and vapor to the top.
- Engineered to meet or exceed international & ASTM building code
- Exceeds drainage efficiency testing standards per ASTM E2273
- Patented Moisture Mitigator click system minimizes wall penetration
PACKAGING
- Dimensions – 27.75″W x 80’L
- 180 sq ft per roll
- Half pallet: 6 rolls
- Half pallet weight: approx. 160 lbs
- Full pallet: 12 rolls
- Full pallet weight: approx. 320 lbs
PHYSICAL PROPERTIES
- Water Resistive Barrier (WRB)
- Apparent thermal conductivity: ASTM C518 – 15 0.0587 (W/m*K) R-value (m2*K/W) 0.1958
- Polypropylene Cup Sheet
- Puncture strength: ASTM D4833 – 65 psi.
- Compressive strength: ASTM D1621 – Mod up to 15,000 lbs/ft2 (72x103kg/M2).
- Flow Capacity: ASTM D4716 – 16gpm/ft of width (200L/min/m of width)
Information, images and specifications are based on the latest product information available. Product is 100% manufactured in the United States. Plastic is 100% recycled material. We reserve the right to make changes without notice due to constant improvements and engineering progress.
Always follow your local and state building codes for ASTM 1063 instructions and roles. Compliant with 2018 IBC and IRC.
